P80 torch P80 plasma cutting torch plasma cutting machines
consumables
Our company produces :
1 . MIG/MAG,CO2 : Binzel 14AK , 15AK ,24KD , 36KD , 501D , Panasonic 180A , 200A , 350A , 500A , Bernard 200E , Bernard 300E Bernard 400E , Bernard 600E ,Tweco 2# , Tweco 3# , Tweco 4# , Tweco 5# , Fronius AW4000 , AW5000 , AL3000 , AL4000 , Saf welding torch , Miller , and tregaskiss and gas nozzle,contact tip , contact tip holder , swan neck , gas
diffuser liner etc .
2 . Tig : WP12 , WP9 , WP17 , WP18 , WP26 welding torches and torch head (F / FV / V / P) , collet , collet body , gas lens
, ceramic nozzle , aluminal nozzle , long / mediu / short cap etc.
3 . Air plasma cutting : P80 , P160 , PT31 , AG60 , SG55 , JG60 , JG100 ,Trafimet serise , Hypertherm , and Thermal dynamics cutting torches , torch head , nozzle , electrodes , tips ,
ceramic shield cap , white wheel , swirl ring etc .
4 . cable joint , earth clamp
5 . welding helmet , electorde holder
6.tungsten electrode
| 1 . P80 torch P80 plasma cutting torch plasma cutting machines
consumables view: |
Frist one , CNC machine torch head :

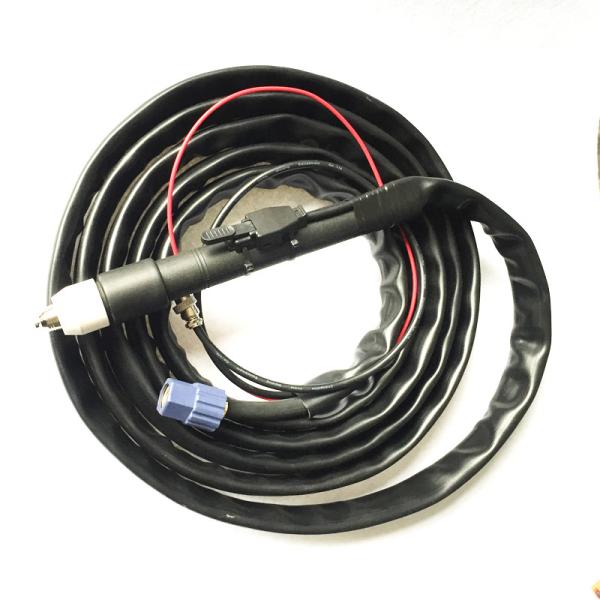

Second one , red handle P80 torch
Third one New handle P80 plasma cutting torch head
| 2 . P80 torch P80 plasma cutting torch plasma cutting machines
consumables technology data : |
| Technical | Rating | Duty cycle | Air pressure | Standard Length | N.w | Packing size |
| P80 ( 40A ) Plasma cutting torch | 40A | 60% | 4.5~5.5 bar | 5M | 4.5KG | 34*34*6cm |
| P80 ( 60A ) Plasma cutting torch | 60A | 60% | 4.5~5.5 bar | 5M | 4.5KG | 34*34*6cm |
| P80 ( 80A ) Plasma cutting torch | 80A | 60% | 4.5~5.5 bar | 5M | 4.5KG | 34*34*6cm |
| P80 ( 100A ) Plasma cutting torch | 100A | 100% | 4.5~5.5 bar | 5M | 4.5KG | 34*34*7cm |
| 3 . P80 torch P80 plasma cutting torch plasma cutting machines
consumables Item No: |
| Description | Standard No. |
| P80 Plasma cutting torch Hand torch head | YT-10PD |
Electrode
| TET02033 |
| Electrode imported Haf | |
| Nozzle 1.3mm | TET01310 |
| Nozzle 1.5mm | TET01512 |
| Nozzle 1.7mm | |
| Nozzle 1.3mm | TET01305 |
| Nozzle 1.5mm | TET01305 |
| Nozzle 1.7mm | |
| Shield | TGN02004 |
| Shield(Argentine ring) | |
| Site wheel | |
| Machine torch head | YT-10PE |
| 4 . P80 plasma cutting torch packing |
. 1 piece high quality plasma torch p80 plasma torch for CNC plasma
machine packed in a plastic bag
. then packed in a box(box size 34*34*7CM)
. 5 pieces high quality plasma torch p80 plasma torch for CNC
plasma machine packed in a carton(carton size 38*36*35CM)
. 135 pieces high quality plasma torch p80 plasma torch for CNC
plasma machine packed in a pallet(pallet size 110*110*120CM)
